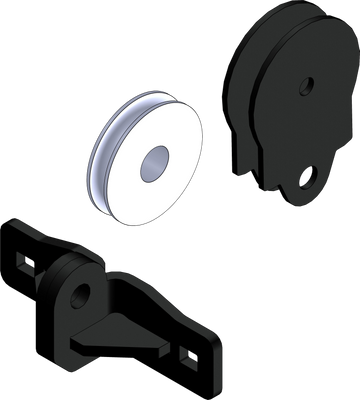

The KFI Quick Plow Pulley is a purpose-built, easy on / easy off cable-attachment pulley designed specifically to work with the KFI UTV Plow System. It improves lift geometry when raising the blade, helps manage cable angles during plowing, and can also slow the raising speed for smoother, more controlled operation. 12" soft strap #106470 is recommended to attach the winch hook back to the machine.
- Large 2-1/8" diameter steel wheel for smother cable movement compared to standard 7/8" rollers
- Multi-position wheel mounting allows fine-tuning for different applications and cable angles
- Curved cable groove helps prevent cable flattening that can lead to premature cable failure
- Eliminates cable kinking caused by small roller contact and abrupt angle changes
- For wide winches with a 6.60" bolt-up pattern, use part #106465
- Replaces the standard winch fairlead during plow season
- For standard-size winches with a 4.875" bolt-up pattern
- Stationary steel wheel prevents pinching of steel cable
- Works with UTV push tubes: 106300,106310, 105635
- For steel cable use only
The KFI Quick Plow Pulley (Part Number 106680) is a specialized component designed to enhance the performance of your UTV snow plow system. Crafted with a large 2-1/8-inch diameter steel wheel, it offers smoother cable movement compared to standard 7/8-inch rollers, reducing wear and increasing durability. This pulley features a multi-position wheel mounting, allowing precise adjustments to optimize cable angles and lift geometry during plowing operations, resulting in more efficient and controlled blade raising. The curved cable groove helps prevent cable flattening, which can lead to premature cable failure, while the stationary steel wheel design minimizes pinching risks, ensuring reliable operation throughout the plowing season. Compatible with wide winches featuring a 6.60-inch bolt-up pattern (use part #106465) and standard winches with a 4.875-inch bolt-up pattern, this pulley replaces the standard fairlead to improve cable management and prolong cable life. It is specifically designed for steel cables, which are common in UTV plow setups, and works seamlessly with UTV push tubes such as 106300, 106310, and 105635. For optimal operation, it is recommended to use a 12-inch soft strap (Part #106470) to attach the winch hook back to the machine, ensuring safe and effective plowing. The KFI Quick Plow Pulley is an essential upgrade for users seeking smoother, more controlled plowing experiences with their UTV snow removal system.
Features:
- Large 2-1/8-inch diameter steel wheel for smoother cable movement compared to standard rollers
- Multi-position wheel mounting allows fine-tuning for different applications and cable angles
- Curved cable groove helps prevent cable flattening and premature failure
- Eliminates cable kinking caused by small roller contact and abrupt angle changes
- Designed to replace standard fairlead during plow season for improved cable management
- Compatible with wide and standard winches with specific bolt-up patterns
- Stationary steel wheel prevents pinching of steel cable
- Works with UTV push tubes including models 106300, 106310, and 105635
- Designed for steel cables only, ensuring durability and proper function
