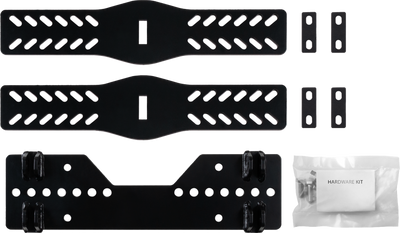

Eliminate the hassle of searching for vehicle-specific hardware with the high-performance Open Trail Powersports ATV Universal Center-Mount Snow Plow Bracket Kit [MPN: 459-5745]. Engineered as a highly adaptable, heavy-duty chassis enhancement, this structural plate kit mounts directly underneath your quad’s central frame tubes to create an incredibly rigid mid-body plow connection. By distributing the crushing weight and feedback loops of packed snowbanks straight into the center of the ATV frame, it delivers superior pushing power, predictable four-wheel traction, and absolute structural frame alignment without forcing you to buy a machine-specific adapter.
Why Riders Shop Mad Lads Moto
- Orders placed today ship same-day or next-day across the lower 48 states!
- We recommend pairing this versatile mounting setup with an Open Trail Center-Mount Push Tube Assembly or a generation-matching straight steel blade to establish an integrated winter clearing network.
- 100% constructed from high-tensile, laser-cut structural steel sheets engineered to survive relentless sub-zero scraping loads and frozen pack impacts.
- Undergoes a rigorous multi-stage industrial cleaning process prior to receiving a show-quality, weather-resistant black powder coat finish for premium salt and corrosion defense.
Confirmed Fitment Information
Part number 459-5745 features an adjustable, non-vehicle-specific architecture configured to interface smoothly with traditional lower frame configurations. Meticulously cross-referenced against factory powersports blueprints, this universal center plow mount is a verified direct fit for the majority of tubular-frame utility quads from 1990 to Present, including:
- Honda FourTrax / Rancher / Foreman / Rubicon (TRX350 / TRX420 / TRX500 / TRX520 Series): Fits standard lower twin tubular steel frames.
- Yamaha Grizzly / Kodiak (450 / 550 / 600 / 660 / 700 Series): Fits conventional bottom steel main rail layouts.
- Suzuki KingQuad / Eiger / Vinson (LT-A400 / LT-A500 / LT-A750 Series): Direct adaptation for tubular belly tubes.
- Kawasaki Brute Force / Prairie (300 / 650 / 750 Series): Direct system installation across bottom structural crossbars.
- Polaris Sportsman (400 / 450 / 500 / 570 / 800 Series): Direct frame replacement style match for conventional tubular under-carriages.
- Push Tube Compatibility: Official center anchor point for standard Open Trail and KFI mid-mount push tube systems (Cross-references exactly with KFI universal center mount configurations).
CRITICAL FRAME GEOMETRY & CAN-AM COMPATIBILITY EXCLUSIONS:
**Can-Am / /Bombardier Chassis Exclusion:** This universal plate relies on clamping around dual parallel steel frame tubes. **It is completely incompatible with Can-Am Outlander or Renegade models utilizing a single-beam Spar Frame (SST chassis geometry)**. Can-Am single-beam structures do not feature the required mounting rails and strictly require a vehicle-specific custom bracket array.
**Installation & Spacing Logic:** Mechanical garage setup utilizes high-strength U-bolts that clamp the mount to your ATV's bottom frame rails. For maximum rigidity, the front U-bolts should be spaced evenly across the flat sections of the frame rail, typically locating the front cluster near the A-arm mounts and the rear set toward the footpeg brackets.
**Skid Plate Modification & Ground Clearance:** This mount utilizes a specialized low-profile spine plate profile designed to keep clearance issues absolutely minimal when trail riding with the plow detached. However, **minor trimming, notched cutting, or temporary removal of your factory plastic under-body skid plate is mandatory** during initial alignment to allow the U-bolts to wrap cleanly around raw steel tubing. All premium mounting fasteners are pre-packaged inside the box.
Technical Specifications
| Attribute |
Specification |
| System Mount Architecture |
Universal Center-Mount Mid-Chassis Receiver Kit |
| Base Foundational Material |
Heavy-Duty Grade 50 Structural Steel Construction |
| Outer Face Protection |
Corrosion-Resistant Semi-Gloss Black Powder Coating |
| Fastener Hardware Inclusions |
High-Tensile Carriage U-Bolts, Washers, and Flange Lock Nuts |
| Estimated Garage Install Time |
Approximately 1 to 1.5 Hours using basic hand tools |
| Push Tube Quick-Release Connection |
Accepts Dual Standard Quick-Connect Clevis Safety Pins |
| Plow Base Compatibility Matches |
Fits Open Trail and KFI Mid-Mount Push Tube Assemblies |
| Manufacturer Part Number |
459-5745 |
