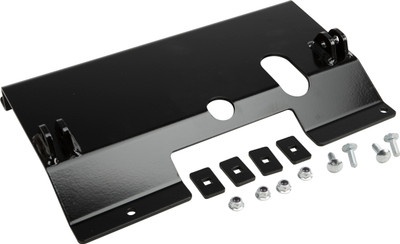

Convert your classic, hard-working utility quad into the ultimate winter trail-clearing machine with the KFI Products ATV Mid-Mount Snow Plow Bracket [MPN: 105190] . Engineered as a model-specific frame enhancement, this heavy-duty reinforcement plate bolts directly underneath your machine's primary engine carriage to establish an incredibly secure mid-body plow connection. By shifting the crushing weight and feedback loops of packed snow directly into your machine's center chassis, it delivers superior pushing power, predictable mid-pack wheel traction, and absolute structural frame alignment.
Why Riders Shop Mad Lads Moto
- Orders placed today ship same-day or next-day across the lower 48 states!
- We recommend combining this mid-mount plate with a standard KFI ATV Mid-Mount Push Tube Assembly (#105000) and a high-efficiency front winch to round out your heavy-duty winter workspace.
- 100% Made in the USA utilizing laser-cut, heavy-gauge 1/4-inch pin tabs paired with a 3/16-inch Grade 50 structural steel foundational main plate.
- Subjected to an industrial shot-blasted and metal bead-priming treatment prior to receiving a high-durability satin black powder coat finish for maximum salt defense.
Confirmed Fitment Information
Part number 105190 features a specialized structural framework layout engineered exclusively for classic, legacy Polaris utility chassis variants. Meticulously cross-referenced against factory vehicle assembly archives, this mid-body plow mount is a verified direct mechanical fit for the following models:
- Polaris 350 / 350L (2x4 / 4x4 / 6x6 configurations): 1993 and Older legacy chassis generations.
- Polaris 400 / 400L (2x4 / 4x4 models): 1994 – 1997 (Direct structural frame profile).
- Polaris Big Boss 400L (6x6 heavy-payload platform): 1995 variant models.
- Polaris Magnum 425 (4x4 setups): 1995 – 1998 (Direct system match).
- Polaris Magnum 425 (6x6 heavy-payload platform): 1996 – 1997 variant models.
- Polaris Xplorer 250 (4x4 utility setup): 2000 – 2001 (Direct factory system placement).
CRITICAL TUBE SPACING, FOUR-STROKE RESTRICTIONS, AND SKID PLATE TRIMMING WARNINGS:
**Push Tube Sizing Parameters:** This bracket is engineered to interface directly with **KFI ATV Mid-Mount Push Tubes (#105000)**. It features a precision pin-up connection width of 14.50 inches (measured center-on-center) designed for 3/8-inch attachment pins. It is also backwards compatible with legacy Cycle Country mid-mount push tubes, provided you utilize KFI #105188 specialized attachment adapters.
**Four-Stroke System Engine Logic:** Please note that this frame plate configuration is highly optimized for four-stroke models. Ensure your internal engine clearance geometry aligns cleanly with mid-mount bolt pathways prior to initializing garage setup.
**Skid Plate Modification & Clearance:** Because this structural bracket mounts flush underneath the quad frame to preserve maximum ground clearance, **minor trimming, notched cutting, or complete removal of your factory plastic under-body skid plate is required** during winter operations. All pin tabs feature a specialized tapered, low-profile shape to ensure that when your plow is detached for trail riding, the tabs won't snag or hang up on logs, trail brush, or rocks.
Technical Specifications
| Attribute |
Specification |
| System Mount Architecture |
ATV Mid-Mount Lower Frame Attachment |
| Base Core Plate Thickness |
3/16 Inch Grade 50 Structural Steel |
| Pin Coupling Tab Thickness |
1/4 Inch Heavy-Duty Structural Grade 50 Steel |
| Pin-Up Connection Metrics |
14.50" Center-to-Center Width for 3/8" Hitch Pins |
| Metal Surface Treatment |
Shot Blasted / Industrial Metal Bead Blasting Prep |
| Outer Face Protection |
Corrosion-Resistant Durable Black Powder Coating |
| Plow Tab Safety Profile |
Tapered Shape to Prevent Trail Snags and Hang-Ups |
| Required Companion Tubes |
Exclusively Requires KFI #105000 Mid-Mount Push Tubes |
| Physical Product Weight |
10.5 Pounds |
| Manufacturer Part Number |
105190 (Alternate SKU: 573305 / 4501-1023) |
