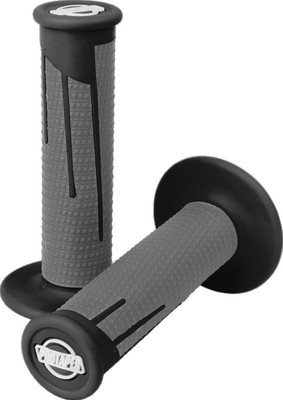

The ProTaper Clamp-On Full Diamond Grips - Black/Dark Gray are a clamp-based grip set built around ProTaper's windowed clutch-side core, which reduces outer diameter and creates relief areas at the palm and fingertips to cut down on impact and vibration compared to solid-core designs. The grip surface is a tacky, supple compound molded directly to that core, while a firmer material is used at the flange and end cap to handle wear and crash contact. A low-profile CNC-machined aluminum clamp holds everything in place, so installation and removal are quick and do not require glue or safety wire.
The full diamond pattern delivers an aggressive, positive bite across the entire grip surface, giving you confident hold whether your hands are wet or dry. This is a clamp-on grip, which means it goes on with the included clamp hardware and comes off just as easily without cutting anything free. Each set ships with throttle cams, and the applications table covers which cam pairs with your machine.
| Brand | ProTaper |
| MPN | 021689 |
| Pattern | Full Diamond |
| Mounting | Clamp-on |
| Application | Motorcycle |
| Color | Black/Dark Gray |
| Handlebar Diameter | 7/8 in. (22.2mm) |
The Clamp-On Grip System ships with throttle cams. ProTaper publishes the cam number to use for each machine below. The grips themselves fit any 7/8 in. handlebar.
| Make | Model | Years | Engine | Cam |
|---|---|---|---|---|
| GASGAS | EC/EX/MC 85/125/300 | 21-22 | 2-Stroke | 7 |
| EX/MC 250F/350F/450F | 21-22 | 4-Stroke | 4 | |
| EC/EX/MC 85/125/250/300 | 23-25 | 2-Stroke | 8 | |
| EX/MC 250F/350F/450F | 23-25 | 4-Stroke | 9 | |
| Honda | CR125R/250R/500R | 89-07 | 2-Stroke | 5 |
| CRF250R/250RX/250X/450R/450R-S/450RL/450RWE/450RX/450X | 02-25 | 4-Stroke | 2 | |
| Husqvarna | TC 85 | 14-17 | 2-Stroke | 5 |
| TC 85 | 18-21 | 2-Stroke | 7 | |
| 85 SX | 22-24 | 2-Stroke | 8 | |
| TC/TE 125/250/300 | 14-16 | 2-Stroke | 5 | |
| TC/TE/TX 125/150/250/300 | 17-21 | 2-Stroke | 7 | |
| TE/TX 150i/250i/300i | 18-23 | 2-Stroke | 4 | |
| FC/FS 250/350/450 | 14-15 | 4-Stroke | 3 | |
| FE 250/350/450/501 | 14-16 | 4-Stroke | 3 | |
| FC/FS 250/350/450/450 Rockstar Edition | 16-21 | 4-Stroke | 4 | |
| FE/FX 250/350/450/501 | 17-21 | 4-Stroke | 4 | |
| FC/FS 250/350/450/450 Rockstar Edition | 23-25 | 4-Stroke | 9 | |
| FE/FX 250/350/450/501 | 23-25 | 4-Stroke | 9 | |
| Kawasaki | KX250F-450F | 04-24 | 4-Stroke | 1 |
| KX 85/100/112/500 | 00-24 | 4-Stroke | 1 | |
| KLX230R/300R/150/250/450 | 20-24 | 4-Stroke | 1 | |
| KTM | 85/125/250 SX/TBI | 23-25 | 2-Stroke | 8 |
| 250/350/450/500 SX/XC | 23-25 | 4-Stroke | 9 | |
| SX/XC 85/105 | 03-17 | 2-Stroke | 5 | |
| 85 SX | 18-21 | 2-Stroke | 7 | |
| 85 SX | 22-24 | 2-Stroke | 8 | |
| SX/EXC/XC/XC-W/MXC 125/144/150/200/250/300/380 | 98-16 | 2-Stroke | 5 | |
| SX/EXC/XC/XC-W 125/150/250/300 | 17-21 | 2-Stroke | 7 | |
| EXC/XC/XC-W 150TPI/250TPI/300TPI | 18-23 | 2-Stroke | 4 | |
| SMR/SX/SX-F/SXS/XC/XC-F 250/350/400/450/505/520/525/540/560 | 00-15 | 4-Stroke | 3 | |
| 450 SX-F Factory Edition | 13-14 | 4-Stroke | 3 | |
| EXC/EXC-F/MXC/XC-W/XCF-W 250/350/400/450/500/520/525/530 | 00-16 | 4-Stroke | 3 | |
| SX-F/XC-F 250/350/450 | 16-21 | 4-Stroke | 4 | |
| SX-F 250/450 Factory Edition | 15-21 | 4-Stroke | 4 | |
| EXC-F/XCF-W 250/350/450/500 | 17-21 | 4-Stroke | 4 | |
| Suzuki | RM125/250 | 93-08 | 2-Stroke | 6 |
| RM-Z250/450, RMX450Z | 04-24 | 4-Stroke | 1 | |
| Yamaha | YZ/WR 250F/250FX/400F/426F/450F/450FX | 98-24 | 4-Stroke | 1 |
| YZ125/125X/250/250X | 93-24 | 2-Stroke | 6 |
Not every product runs through our fitment finder, and we would rather you confirm exact fitment than rely on a partial filter. Match the specifications against your machine or the part you are replacing, or contact us and we will confirm it for you.
