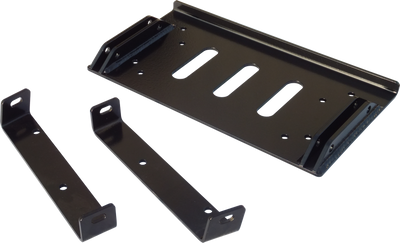

KFI 10-12 Can-Am Outlander 800/ 07-12 Renegade 500-800 ATV Plow Mount

Can-Am Outlander ATV plow mount

This KFI ATV mid-mount plow mount bolts under the Can-Am Outlander and gives the KFI 105000 ATV push tube a place to pin on and off. It is made in the USA from 3/16 in. and 1/4 in. Grade 50 steel, and all mounting hardware is included.

• Push tube: Designed for the KFI 105000 ATV push tube: 14.50 in. center-to-center pin-up width with 3/8 in. pins.
• Build: 3/16" and 1/4" Grade 50 steel, bead blasted then powder coated black.
• Install: All mounting hardware and complete instructions included.

What you need for a complete plow

A plow is four parts that work together, each sold separately. This page covers the plow mount; you also need the others before you can plow.

1. Blade: A KFI ATV blade: KFI 48 in. Pro-S, 54 in. Pro-S or 60 in. Pro-S steel, the 50 in. Light Flex, or the 60 in. Pro-Poly.
2. Push tube: KFI ATV Plow Base Push Tube (105000).
3. Plow mount: This item.
4. Lift: A winch (see winches) on a winch mount for your ATV, or the KFI Manual ATV Plow Lift (105015) on blades up to 60 in.

Vehicle fit

From KFI's application chart.

Specifications
